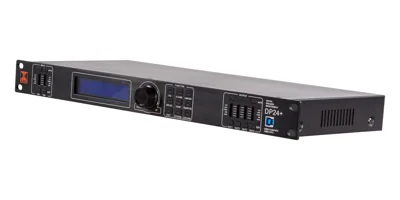

dB-Mark DP24 +

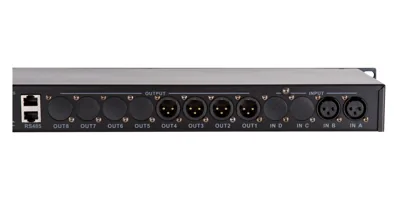

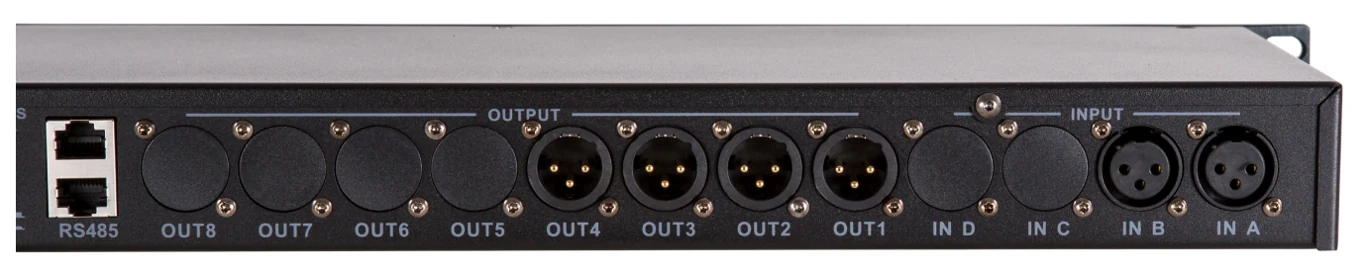

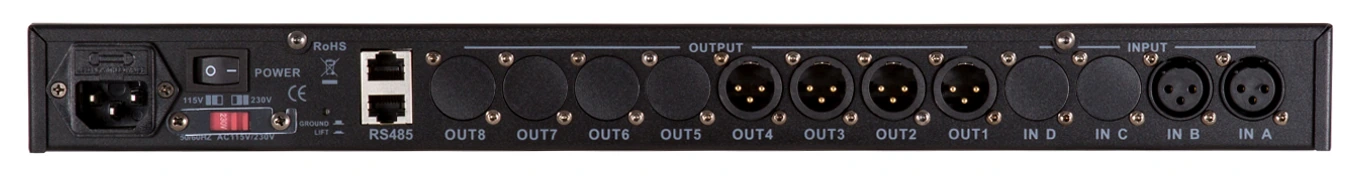

- 2 balanced inputs and 4 balanced outputs on XLRs.
- DP + Series allows remote control over LAN via TCP/IP with built-in web-based GUI
- All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters.
- Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave.
- Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass.
- Each input has 2 dynamic EQs, noise gate, and adjustable compressor.
- Automatic Gain Control available on input channels.
- Configurable compressor and peak limiter on every output channel.
- Delay on all channels, adjustable in milliseconds, metres or feet.
- Full matrix mixing, route any input to any output.
- All input and output channels can be individually muted.
- Channels can be linked for convenience to allow editing of two or more channels at a time
- 32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters.
- USB 2.0/3.0, RS485*, and Ethernet connections are provided for PC control of multiple devices.
- Operation possible using the front panel controls, Windows app, or the built-in web interface.
- 30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB.
- Password protection for partial or full lock of system settings.
- LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip.

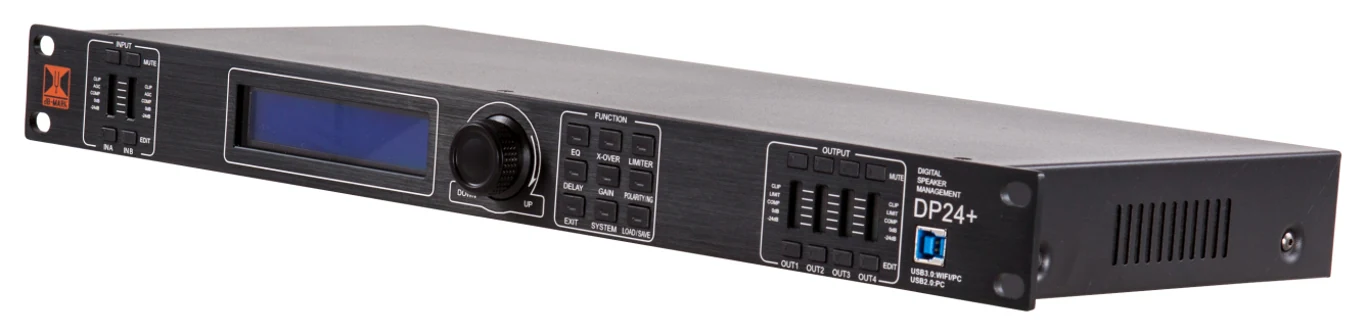

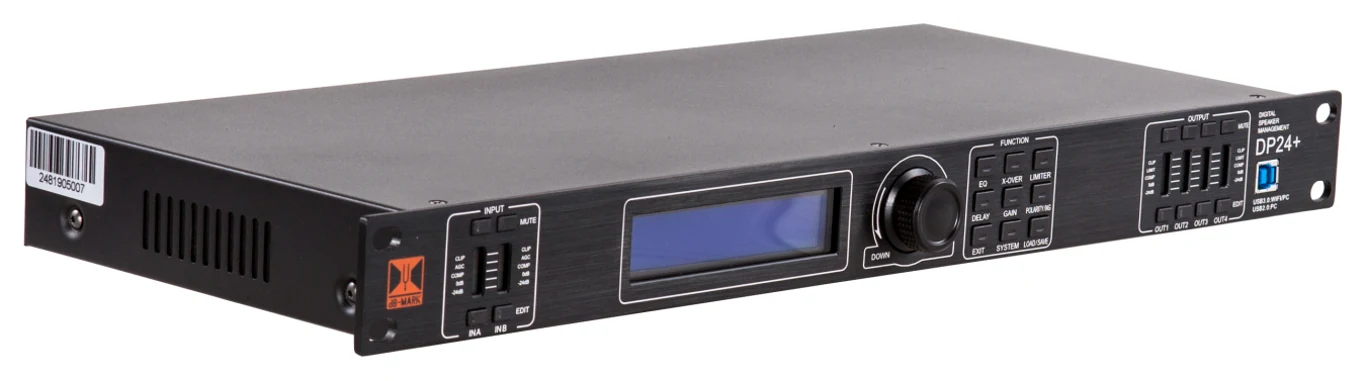

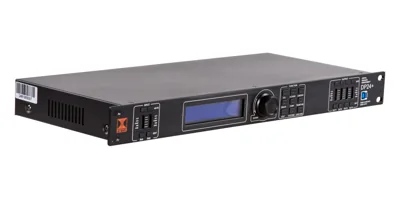

- 2x24 character dot-matrix blue back-lit LCD display.
- Gross weight: 5kg
- Shipping Dimensions: 562mm x 296mm x 98mm

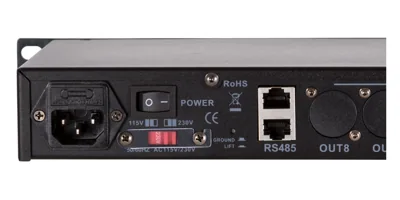

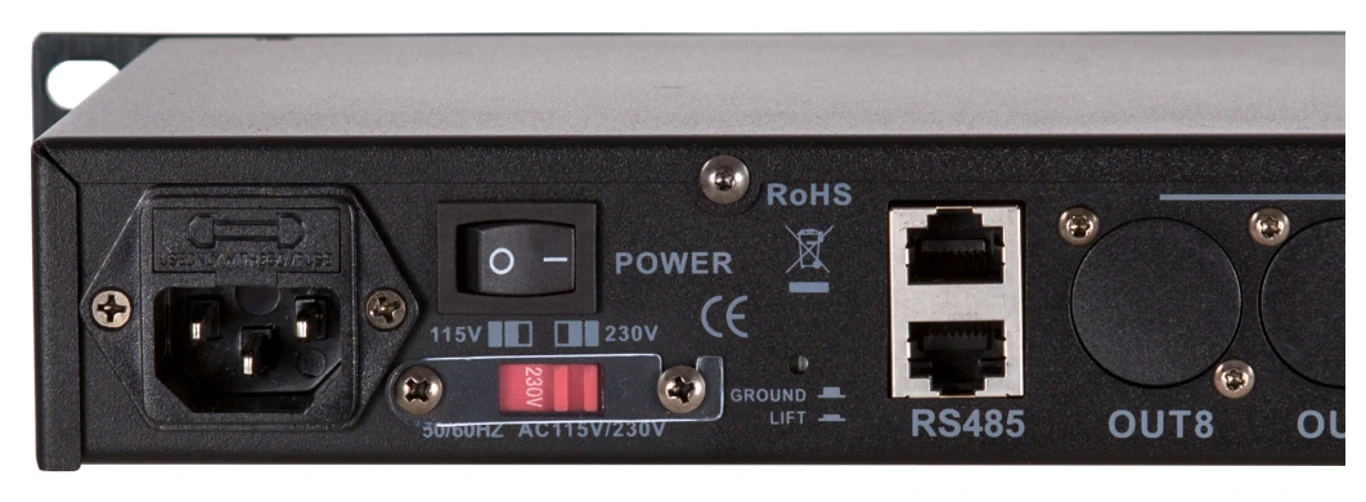

- Power 110V /220V AC 50/60Hz <25W
(*Phoenix connector required for RS485)
Editor software available for Windows
CLICK HERE TO DOWNLOAD
